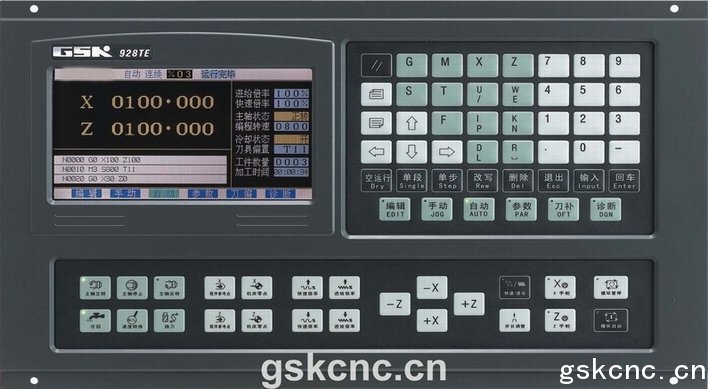

GSK928TEII CNC Lathe Controller
GSK928TE, realized high-speed μm-precision control with CPLD hardware interpolation, has developed for economical high precision turning machine.
GSK928TE has graphic LCD display with friendly Chinese/English menu and tool-trail display. Its adjustable speed-up/down time brings that it is widely suitable for reaction step drive system, complex step drive system, and servo drive system.
|
Controllable/Linkage axes
|
2 axes ( X , Z axis )
|
|
Min. setting unit
|
0.001mm
|
|
Max travel
|
7999.999
|
|
Max move speed
|
15000mm /min
|
|
User Data Storage
|
100programs, 24KB
|
|
Graphic LCD
|
320×240 lattice, tool-trail graphic display
|
|
RS232 interface
|
Optional
|
|
Spindle functions
|
4 grades control or 0 ~10V simulate control
|
|
Tool numbers
|
4 ~ 8 positions
|
|
Move ratio
|
25%,50% , 75% ,100%, adjustable
|
|
Feed ratio
|
0% ~ 150%, 16steps, adjustable
|
|
Speed-up/down
|
Adjustable
|
|
Data protection
|
User program and parameters safeguard at power-off
|
|
Thread function
|
Metric/inch line thread, taper thread, tool withdrawal mark thread
|
|
Electro-hand wheel
|
Optional
|
|
Interpolation
|
Linear/ arc interpolation
|
|
Edit
|
Full screen program edit, Doc manage
|
|
Program mode
|
Standard ISO code, relative/absolute complex program
edit, arc program edit with R, I, or K
|
|
Main function code
|
G00 ,G01,G02,G03,G33 ,G90 ,G92 ,G94,G74 ,G75 ,
G72,G22,G80 ,G26 ,G27,G29 ,G32 ,G04,M00 ,M02 ,
M20,M30 ,M03,M04 ,M05,M08,M09 ,M10,M11,M32 ,
M33,97,M98 ,M99,M21 ,M22,M23,M24 ,M91 ,M92,
S0-S9999 ,F0-9999 ,T00-T88,
|
|
Soft/hardware over travel protection, driver alarm protection, parameters protection switch
|
|
Overall size
|
375 ×200×118mm /420 ×260×123.5mm (small/large)
|
GSK928TEII Turning CNC system user manual:
http://www.Gskcnc.cn/uploads/soft/100630/GSK928TC-TE_CNC_Turning_Controller_User_Manual.rar
GSK928TEII Communicator software download:
http://www.Gskcnc.cn/uploads/soft/100630/GSK928TC-TE_CNC_Turning_Controller_Communicator.rar
|
