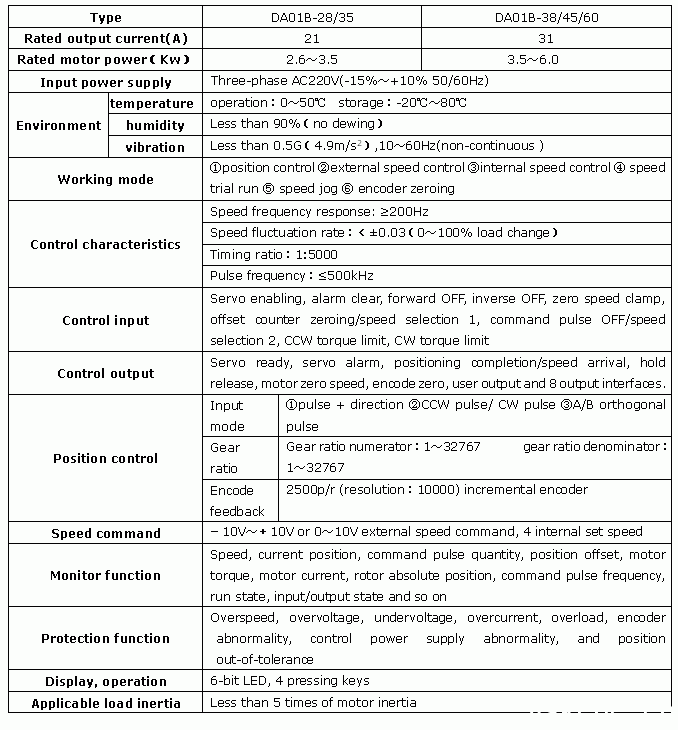

DA01B AC Servo Motor Driver

DA01B uses the exclusive DSP(digital signal processor) and CPLD chip for the motor with high integration and excellent reliability;

  Mitsubishi intellective IPM module with perfect and reliable run function;

Pulse command and analog command input, position feedback output and many I/O interfaces defined by customer to match with all kind of open-loop or closed-loop controller to realize the position open-loop or speed closed-loop controller；

Convenient state monitoring, and parameter modification.

New model DAT2100, DAT2075 are available now.

Other models are also including: DA01, DA01A, DA01D, depends on CNC controller or motor sizes.

Functions and operations are the same.
