DA98B AC Servo Motor Driver
With high cost-performance and wide application, DA98B AC Servo drive unit is integrated the single-axis motion control function.
Pulse command and analog command input, position feedback output and many I/O interfaces defined by customer to match with all kind of open-loop or closed-loop controller to realize the position open-loop or speed closed-loop controller;

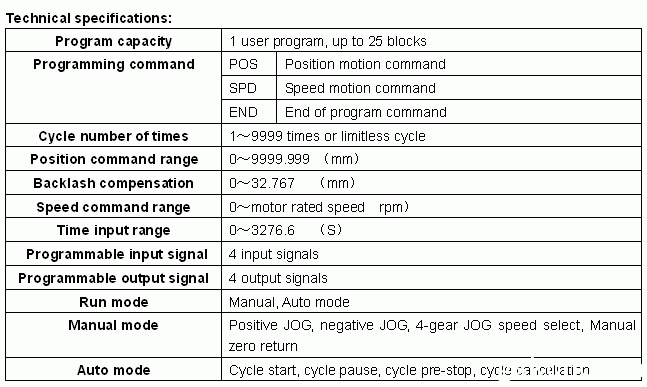

Integrated the single-axis control function without the command control unit to realize the automatically completing the single-axis cycle motion and I/O control with the high cost-performance, and widely applied to the automation field;
Simple and active single-axis command system to avoid the mistake the programming phrasing.
|

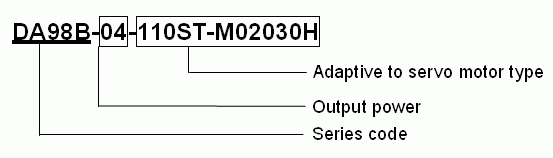

MODEL
|
DA98B-10
|
DA98B-13
|
DA98B-15
|
DA98B-23
|
DA98B-25
|
DA98B-39
|
|
Output power (KW) *
|
1.0
|
1.3
|
1.5
|
2.3
|
2.5
|
3.9
|
|
Suitable motor (SJT series)
|
110SJT-
M040D
|
|
110SJT-
M060D
|
|
|
|
|
130SJT-
M040D
|
130SJT-
M050D
|
130SJT-
M060D
|
130SJT-
M150B
|
130SJT-
M100D
|
130SJT-
M150D
|
|
Input power
|
Single phase or 3 phases AC
（0.85~1.1）×220 V 50Hz/60Hz
|
3 phases AC （0.85~1.1）×220 V
50 Hz /60Hz
|
|
Working condition
|
Temperature: working: 0~55℃ storage: -20℃~80℃
Humidity: less than 90% (no dew)
Vibration: less than 0.5G (4.9m/S2), 10Hz~60Hz ( no continuous run)
|
|
Control mode
|
①position control ② speed control ③ speed dry run ④ JOG run
|
|
Rebirth brake
|
Inner
|
|
Control characters
|
Speed frequency response: not less than 200Hz
|
|
Speed fluctuation: <± 0.03 (load: 0~100%); <±0.02 (power: -15~+10%)
(value corresponding to rated speed)
|
|
Speed ratio: 1:5000
|
|
Pulse frequency: ≤500kHz
|
|
Control input
|
①servo enable ② alarm release ③ CCW drive forbid ④ CW drive forbid ⑤ warp counter cleanup/ speed select 1 ⑥ dictate pulse forbid/speed select 2 ⑦ CCW torque limit ⑧ CW torque limit
|
|
Control output
|
①servo prepared output ② servo alarm output ③ positioned output/ speeded output
|
|
Position control
|
Input mode
|
①pulse + direction ② CCW pulse/ CW pulse
③ 2 phases A/B quadrature pulse
|
|
Electric gear ratio
|
1~32767/1~32767
|
|
Feedback pulse
|
10000 pulse/rotation
|
|
Speed control
|
4 kinds inner speed
|
|
Shifting function
|
Parameters setting shifting time: 1ms~10000ms (0r/min-1000r/min)
|
|
Monitoring function
|
Rev, current position, dictate pulse accumulate, position warp, motor torque, motor current, linear speed, rotor absolute position, dictate pulse frequency, running state, I/O terminal signal and so on.
|
|
Protection function
|
Overspeed, main power overvoltage/ undervoltage, overcurrent, overload, brake abnormity, encoder singularity, control power unconventionality, position warp, etc
|
|
Display, operation
|
6bits LED, 4 buttons
|
|
Suitable load inertia
|
Less than 5 times of the motor’s inertia
|
|
Weight
|
2.8 Kg
|
|

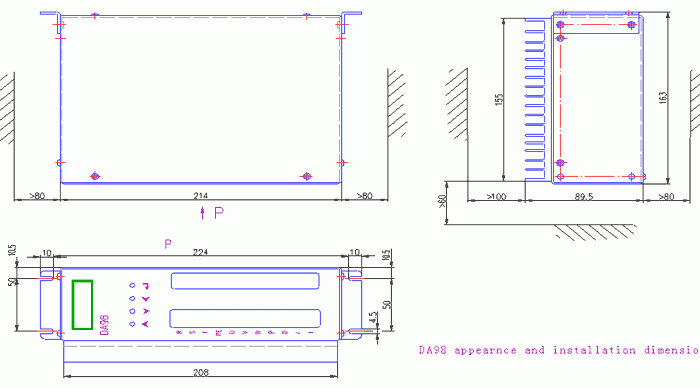

Oversize
|
244mmx163mmx92mm (see the figure)
|
| |
|
|
|
|
|
|
|
Following are the matching motor and specifications:
Each unit includs 1 AC Servo Motor and 1 Motor Driver.
DA98B-15-130SJT-M100B
Incl. 1500W, 10NM, 1500rpm, 6.0A, 130mm support AC Servo Motor
DA98B-25-130SJT-M100D
Incl. 2500W, 10NM, 2500rpm, 10A, 130mm support AC Servo Motor
DA98B-23-130SJT-M150B
Incl. 2300W, 15NM, 1500rpm, 8.5A, 130mm support AC Servo Motor
DA98B-39-130SJT-M150D
Incl. 3900W, 15NM, 2500rpm, 14.5A, 130mm support AC Servo Motor
DA98B-27-175SJT-M180B
Incl. 2700W, 18NM, 1500rpm, 16.5A, 175mm support AC Servo Motor
DA98B-45-175SJT-M180D
Incl. 4500W, 18NM, 2500rpm, 18A, 175mm support AC Servo Motor
DA98B-33-175SJT-M220B
Incl. 3300W, 22NM, 1500rpm, 19A, 175mm support AC Servo Motor
DA98B-55-175SJT-M220D
Incl. 5500W, 22NM, 2500rpm, 22A, 175mm support AC Servo Motor
DA98B-45-175SJT-M300B
Incl. 4500W, 30NM, 1500rpm, 26A, 175mm support AC Servo Motor
DA98B-75-175SJT-M300D
Incl. 7500W, 30NM, 2500rpm, 30A, 175mm support AC Servo Motor
BRAKE FUNCTION* Optional, For AC servo motors Torque>15NM
BRAKE FUNCTION* Optional, For AC servo motors Torque less or equal to 15NM
DA98B AC servo driver user manual download:
http://www.Gskcnc.cn/uploads/soft/100630/DA98B_AC_Servo_Driver_User_Manual.rar |
